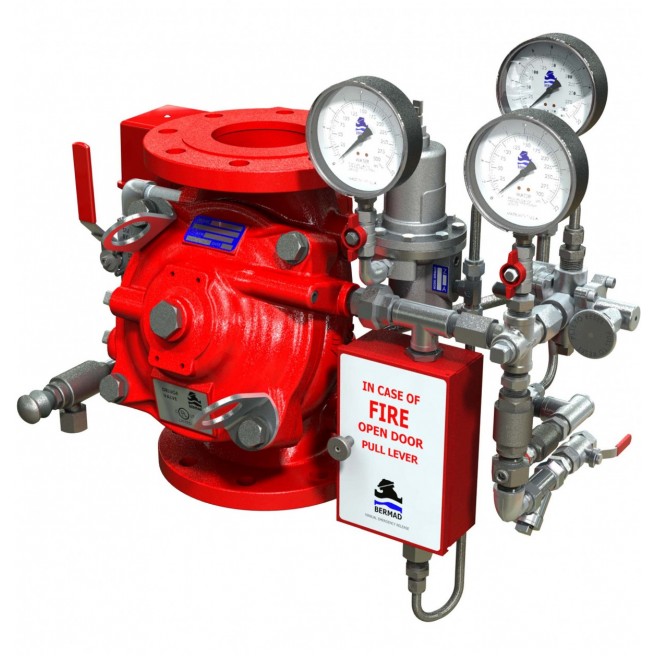

The BERMAD model 400Y-1MC is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards. The 400Y-1MC is activated by a hydraulic relay valve which latches the deluge valve open until reset locally. An integral pressure reducing pilot valve ensures a precise, preset and stable downstream system water pressure. The 400Y-1MC is suitable for systems with open nozzles with a high pressure water supply for water or foam discharge.

Safety and reliability

• Time proven, simple, fail-safe actuation
• Single piece, rugged elastomeric diaphragm seal - VRSD technology
• Obstacle-free, uninterrupted flow path
• No mechanical moving parts
• Latches open: remains open until reset locally
• Valve position limit switches

Designed for fire protection

• Face-to-face length standardized to ISO 5752 / EN558-1
• Meets the requirements of the industry standards

Quick and easy maintenance

• In-line serviceable
• Quick cover removal without detaching control trim*
• Swivel mounted drain valves*

* not including 1½” & 2” valves

Typical applications

• High Pressure water supply
• Automatic water spray
• Foam applications
• Corrosive water systems

• Very high flow efficiency
• Straight through flow Y- type body
• Approved for PN25 / 365 psi
